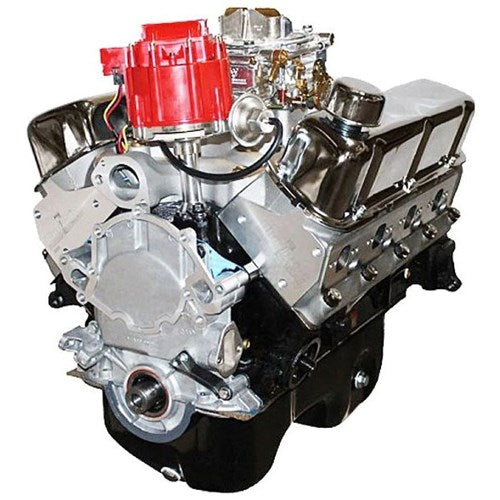

SB Ford 347 c.i.d Crate Engine, Dressed

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.



BLOCK:



Hand picked seasoned block

Square and parallel decked

Align honed main bearing bore

Cylinders honed on computer controlled machine to within .0002 straightness and roundness

Cylinders are sonic tested for thickness

2-Bolt Main

4.000" Bored .040" Over

1-Piece Rear Main Seal

Mech fuel pump provision: Yes

ROTATING ASSEMBLY:



New BluePrint Cast steel crankshaft

3.400" Stroke

Forged I-beam 5.400" connecting rods

Forged pistons

28oz External balance

CYLINDER HEADS:



BluePrint Aluminum Cylinder Heads -HP9008

60cc chamber

2.02" intake/1.60" exhaust valves

190cc intake/65cc exhaust runners

CAM SPECS:



Cam Type: Roller

.543 Intake .554 Exhaust

218 Intake / 226 Exhaust duration

@ .050 - 112 degree lobe separation

IGNITION TIMING:



34 Degrees Total at 3500 RPM

ALSO INCLUDES:



Dual plane, satin aluminum intake manifold

600cfm carburetor

Distributor

Valve covers

Painted oil pan

Brass freeze plugs

Dyno test results shipped with engine

NOTES:



Not for use in pollution controlled vehicles.

Engine timing cover is designed for standard rotation water pump ONLY

Category Long Engines

Brands Blueprint Engines

Cubic Inch 347

Engine Type Windsor

Horsepower 415 HP

Torque 415 ft-lbs

Vehicle Make Ford
